INA K81109-TV-A-HLA/0-8
Axial-Cylindrical Roller Bearings
Axial cylindrical roller and cage assembly K811, single direction, suitable for combination with axial bearing washers
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

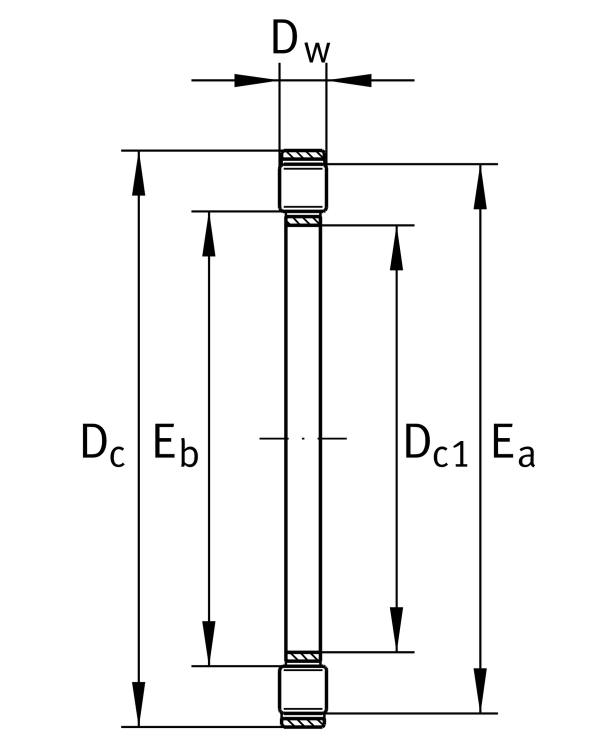

Main Dimensions & Performance Data
Dc1
45 mm
Bore diameter cage
Dc
65 mm
Cage outer diameter
Dw
6 mm
Rolling element diameter
Ca
59,000 N
Basic dynamic load rating, axial
C0a
163,000 N
Basic static load rating, axial
Cua
16,300 N
Fatigue load limit, axial
CG
5,200 1/min
Limiting speed
nϑr
1,970 1/min
Reference speed
≈m
35 g
Weight
Mounting dimensions
Eb
47 mm
Raceway dimension
Ea
63 mm
Raceway dimension
