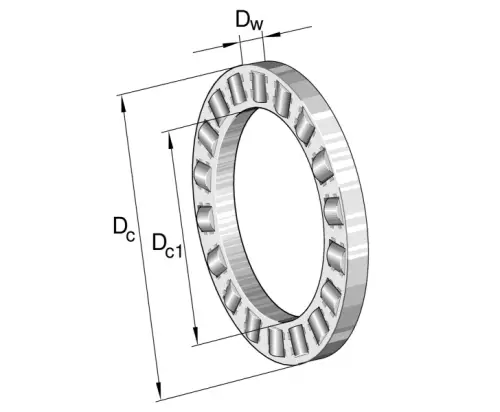

INA K81110-TV
Axial-Cylindrical Roller Bearings
Axial cylindrical roller and cage assembly K811, single direction, suitable for combination with axial bearing washers
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

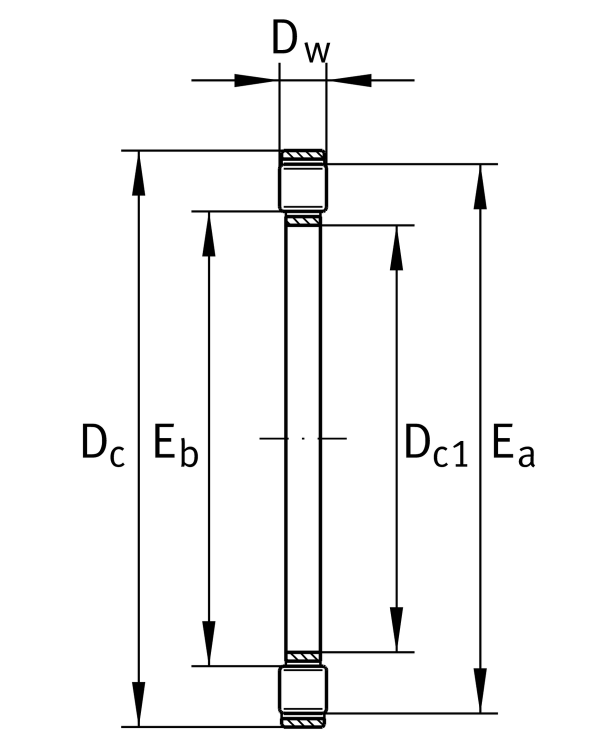

Main Dimensions & Performance Data
Dc1
50 mm
Bore diameter cage
Dc
70 mm
Cage outer diameter
Dw
6 mm
Rolling element diameter
Ca
62,000 N
Basic dynamic load rating, axial
C0a
177,000 N
Basic static load rating, axial
Cua
17,700 N
Fatigue load limit, axial
CG
4,900 1/min
Limiting speed
nϑr
1,840 1/min
Reference speed
≈m
36.26 g
Weight

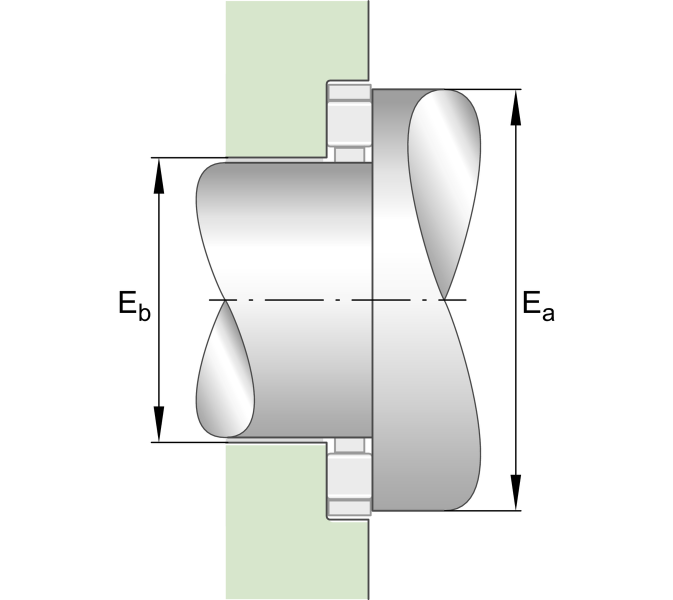

Mounting dimensions
Eb
52 mm
Raceway dimension
Ea
68 mm
Raceway dimension
