INA K81113-TV
Axial-Cylindrical Roller Bearings
Axial cylindrical roller and cage assembly K811, single direction, suitable for combination with axial bearing washers
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

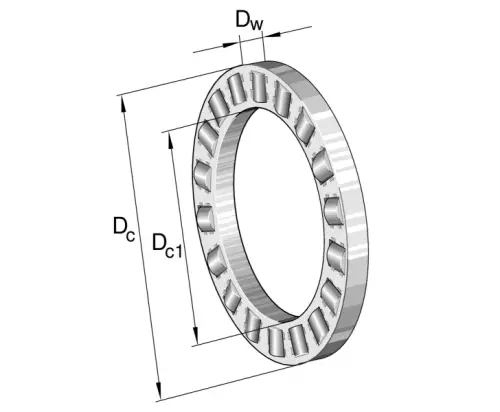

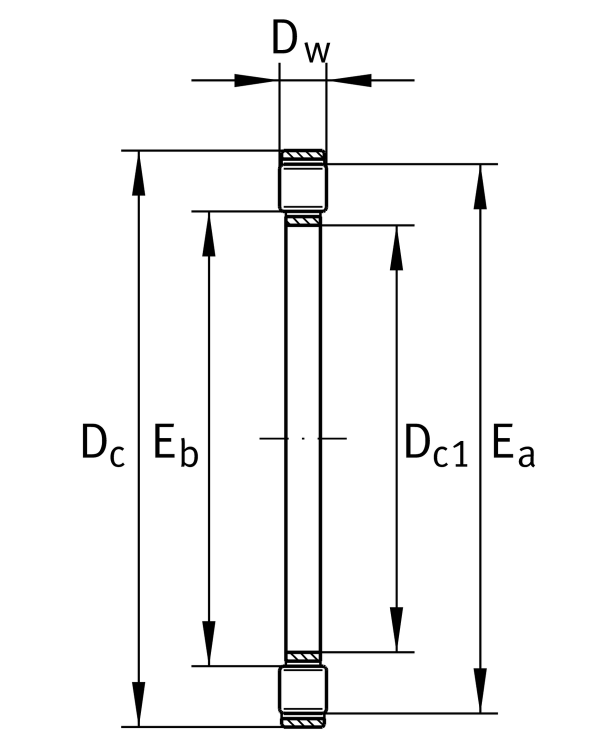

Main Dimensions & Performance Data
Dc1
65 mm
Bore diameter cage
Dc
90 mm
Cage outer diameter
Dw
7.5 mm
Rolling element diameter
Ca
107,000 N
Basic dynamic load rating, axial
C0a
340,000 N
Basic static load rating, axial
Cua
34,500 N
Fatigue load limit, axial
CG
3,700 1/min
Limiting speed
nϑr
1,260 1/min
Reference speed
≈m
83.71 g
Weight

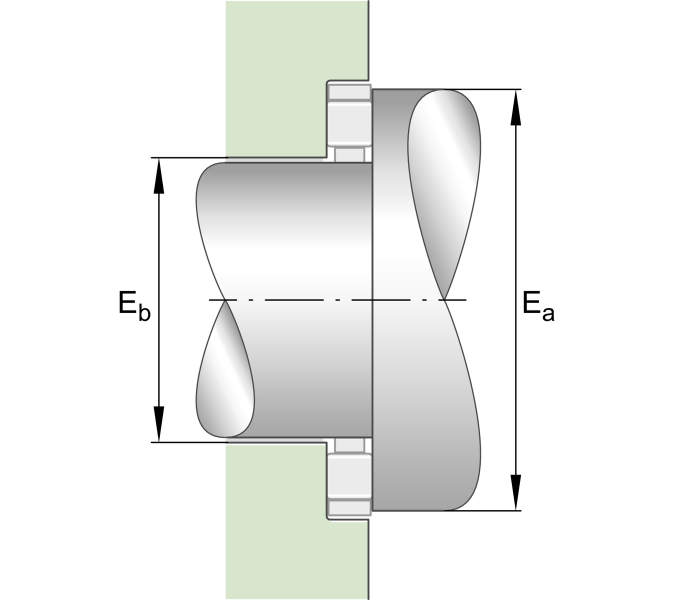

Mounting dimensions
Eb
67 mm
Raceway dimension
Ea
87 mm
Raceway dimension
