INA K81115-TV
Axial-Cylindrical Roller Bearings

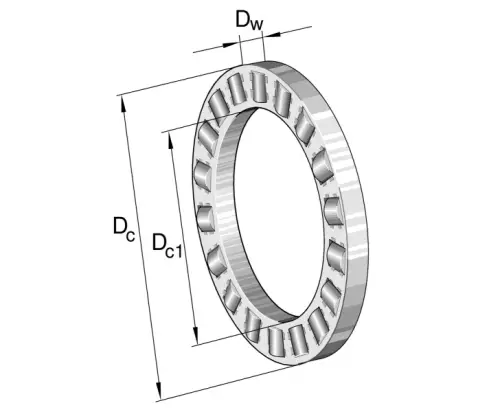

Axial cylindrical roller and cage assembly K811, single direction, suitable for combination with axial bearing washers
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

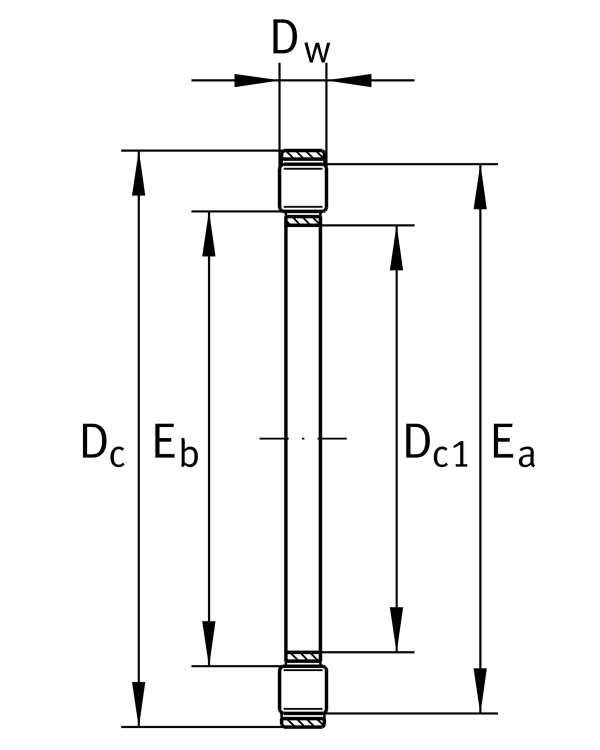

Main Dimensions & Performance Data
Dc1
75 mm
Bore diameter cage
Dc
100 mm
Cage outer diameter
Dw
7.5 mm
Rolling element diameter
Ca
107,000 N
Basic dynamic load rating, axial
C0a
350,000 N
Basic static load rating, axial
Cua
36,000 N
Fatigue load limit, axial
CG
3,300 1/min
Limiting speed
nϑr
1,190 1/min
Reference speed
≈m
88.55 g
Weight

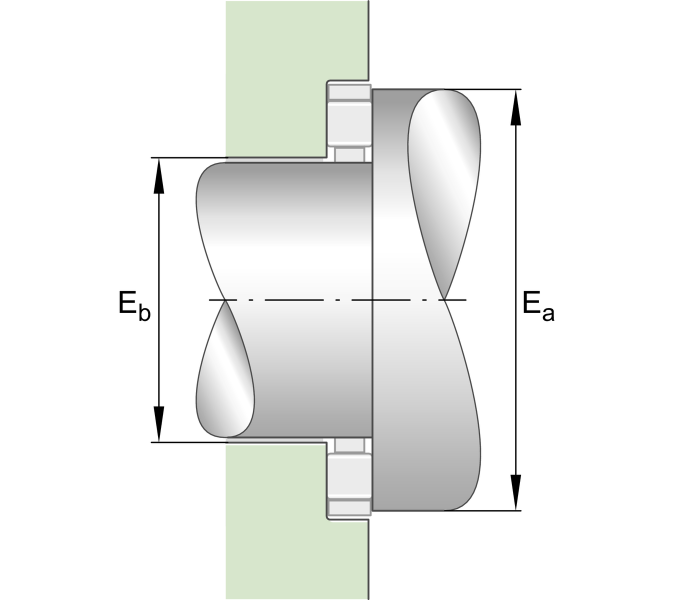

Mounting dimensions
Eb
78 mm
Raceway dimension
Ea
97 mm
Raceway dimension
