INA KR16-PP-RR
Cam Rollers

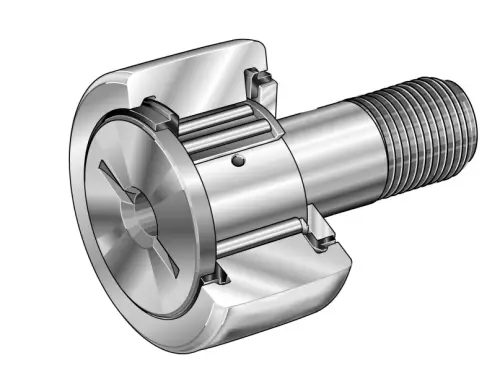

Stud type track rollers KR..-PP, with axial guidance, plastic axial plain washers on both sides, optimized INA-profile
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

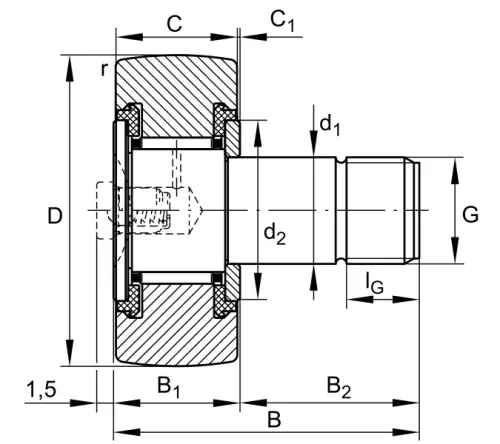

Main Dimensions & Performance Data
D
16 mm
Outside diameter
d1
6 mm
Fit diameter of roller stud / stud
B
28 mm
Width of the roller stud
Cr w
3,200 N
Basic dynamic load rating, radial
C0r w
3,450 N
Basic static load rating, radial
Cur w
465 N
Fatigue load limit, radial
nD G
14,000 1/min
Speed on permanent grease lubrication
≈m
0.017 kg
Weight
