INA PWKR35-2RS-RR-XL
Cam Rollers
Stud type track rollers PWKR..-2RS, with axial guidance, full complement cylindrical roller set, lip seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

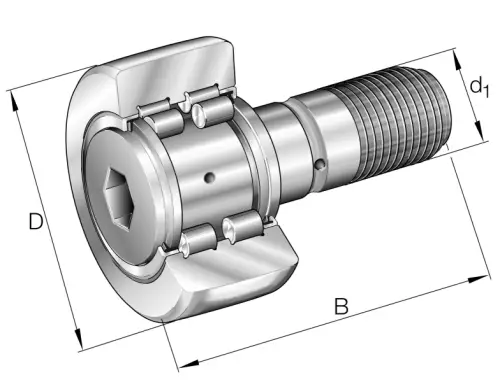

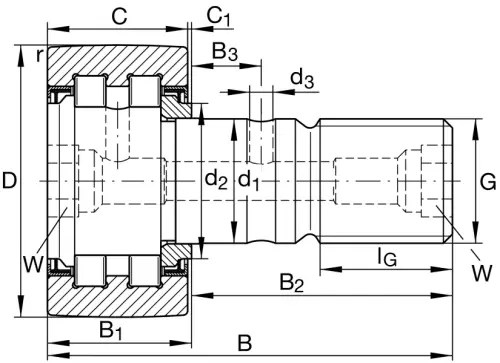

Main Dimensions & Performance Data
D
35 mm
Outside diameter
d1
16 mm
Fit diameter of roller stud / stud
B
52 mm
Width
Cr w
12,500 N
Basic dynamic load rating, radial
C0r w
14,900 N
Basic static load rating, radial
Cur w
1,790 N
Fatigue load limit, radial
nD G
6,000 1/min
Speed on permanent grease lubrication
F0r per
14,900 N
Permissible static load, radial
Fr per
10,600 N
Permissible dynamic load outer ring, radial
≈m
160 g
Weight
