INA KR22-NIP-VD/MON
Cam Rollers

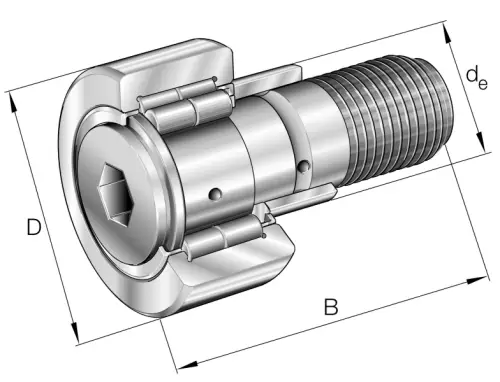

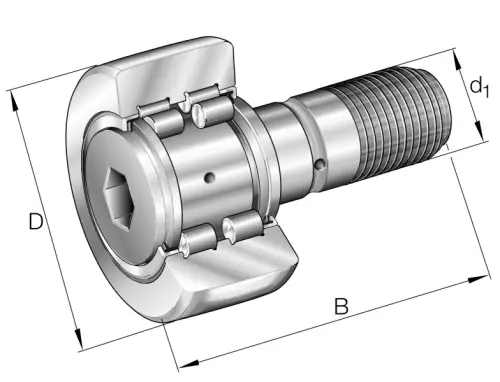

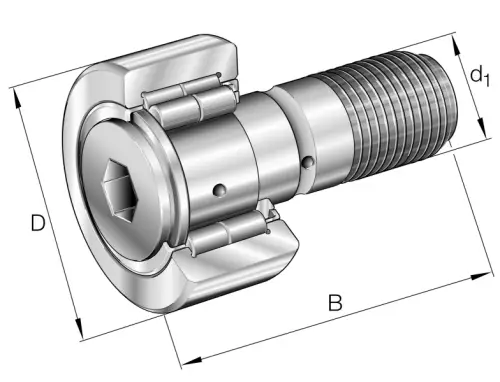

Yoke type track roller KR..-B, with cage, with axial guidance, no eccentric
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

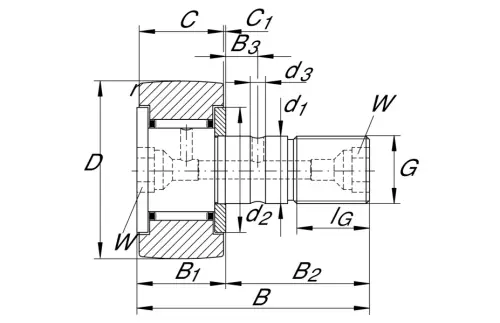

Main Dimensions & Performance Data
D
22 mm
Outside diameter
d1
10 mm
Fit diameter of roller stud / stud
B
36 mm
Width of the roller stud
Cr w
4,500 N
Basic dynamic load rating, radial
C0r w
5,400 N
Basic static load rating, radial
Cur w
740 N
Fatigue load limit, radial
nD G
8,000 1/min
Speed on permanent grease lubrication
≈m
42.88 g
Weight
