INA PWKRE90-2RS-XL
Cam Rollers
Stud type track rollers PWKRE..-2RS, with axial guidance, full complement cylindrical roller set, with eccentric collar, lip seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

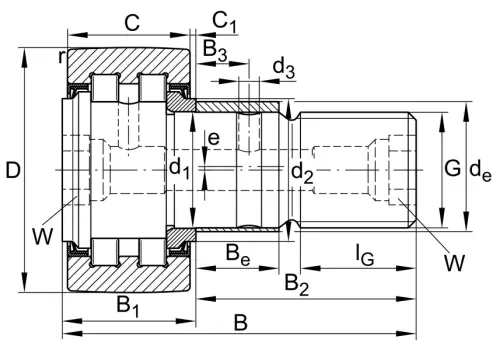

Main Dimensions & Performance Data
D
90 mm
Outside diameter
d1
30 mm
Fit diameter of roller stud / stud
B
100 mm
Width
Cr w
63,000 N
Basic dynamic load rating, radial
C0r w
89,000 N
Basic static load rating, radial
Cur w
12,500 N
Fatigue load limit, radial
nD G
1,800 1/min
Speed on permanent grease lubrication
F0r per
89,000 N
Permissible static load, radial
Fr per
89,000 N
Permissible dynamic load outer ring, radial
≈m
1.98 kg
Weight
