INA LR50/7-2RS
Track Rollers
Track rollers LR50, double row, sealed on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

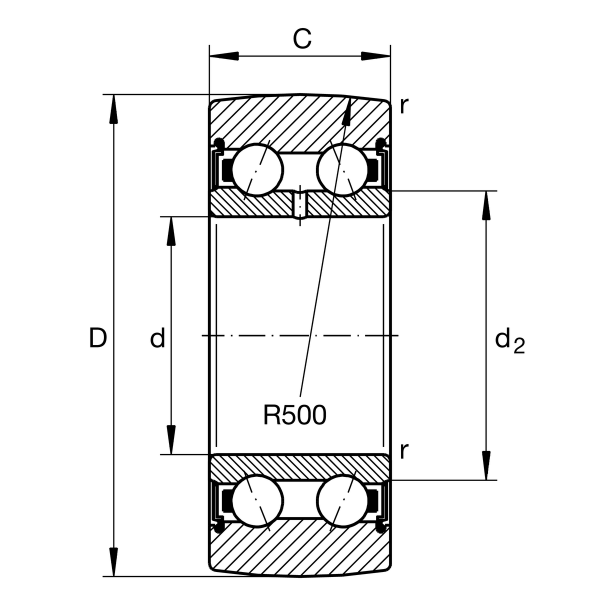

Main Dimensions & Performance Data
D
22 mm
Outside diameter
d
7 mm
Bore diameter
C
10 mm
Height
Cr w
3,300 N
Basic dynamic load rating, radial
C0r w
1,700 N
Basic static load rating, radial
Cur w
83 N
Fatigue load limit, radial
nD G
10,000 1/min
Speed on permanent grease lubrication
Fr per
1,700 N
Permissible dynamic load outer ring, radial
≈m
15 g
Weight
