INA LR50/8-2RSR-RR
Track Rollers
Track rollers LR50, double row, sealed on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

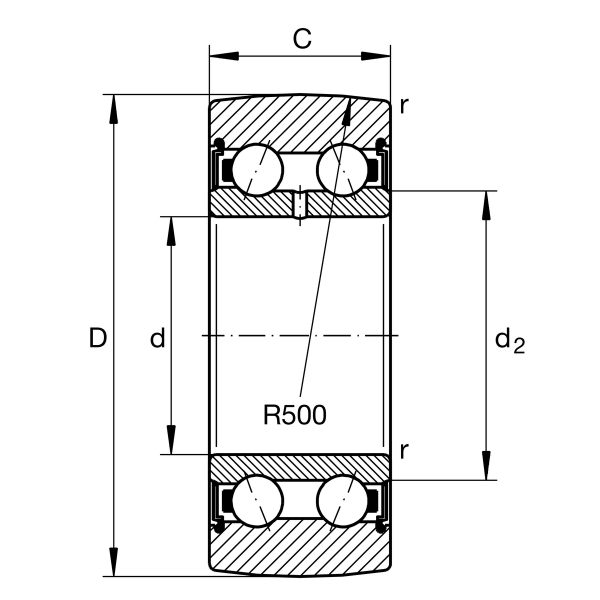

Main Dimensions & Performance Data
D
24 mm
Outside diameter
d
8 mm
Bore diameter
C
11 mm
Height
Cr w
4,300 N
Basic dynamic load rating, radial
C0r w
2,460 N
Basic static load rating, radial
Cur w
122 N
Fatigue load limit, radial
nD G
10,000 1/min
Speed on permanent grease lubrication
Fr per
2,460 N
Permissible dynamic load outer ring, radial
≈m
0.03 kg
Weight
