INA LR5003-2RS
Track Rollers
Track rollers LR50, double row, sealed on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

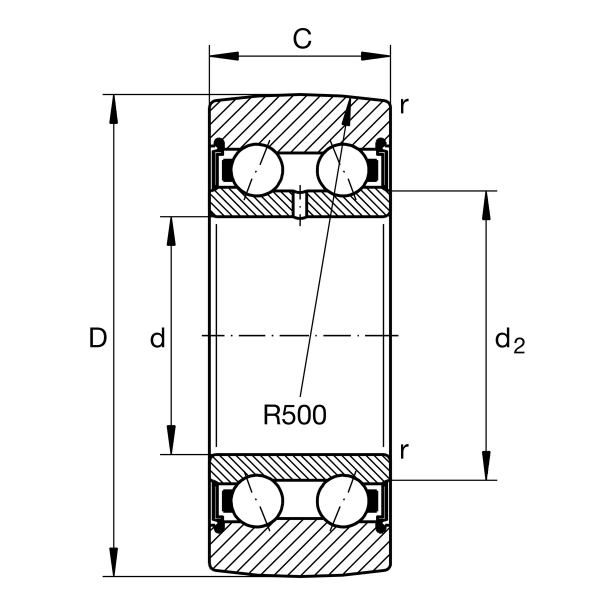

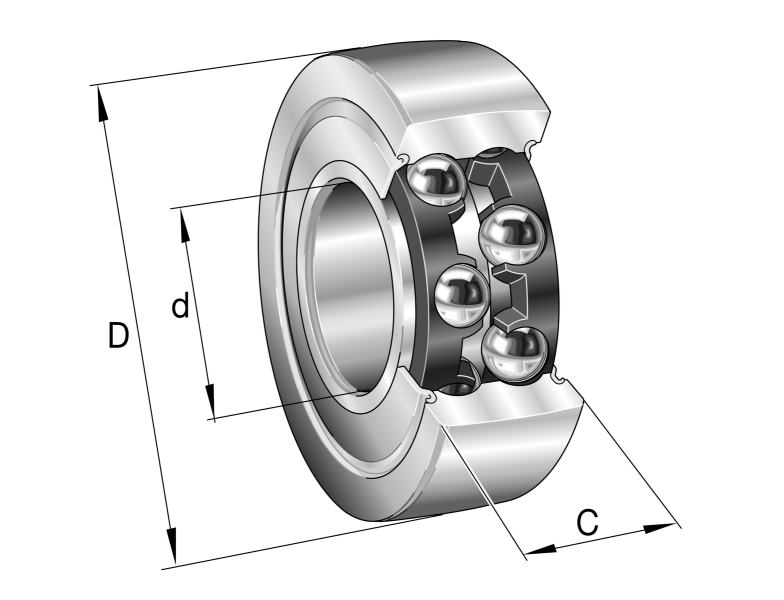

Main Dimensions & Performance Data
D
40 mm
Outside diameter
d
17 mm
Bore diameter
C
14 mm
Height
Cr w
7,800 N
Basic dynamic load rating, radial
C0r w
5,400 N
Basic static load rating, radial
Cur w
275 N
Fatigue load limit, radial
nD G
6,000 1/min
Speed on permanent grease lubrication
Fr per
5,400 N
Permissible dynamic load outer ring, radial
≈m
0.07 kg
Weight
