INA LR5006-2RS
Track Rollers
Track rollers LR50, double row, sealed on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

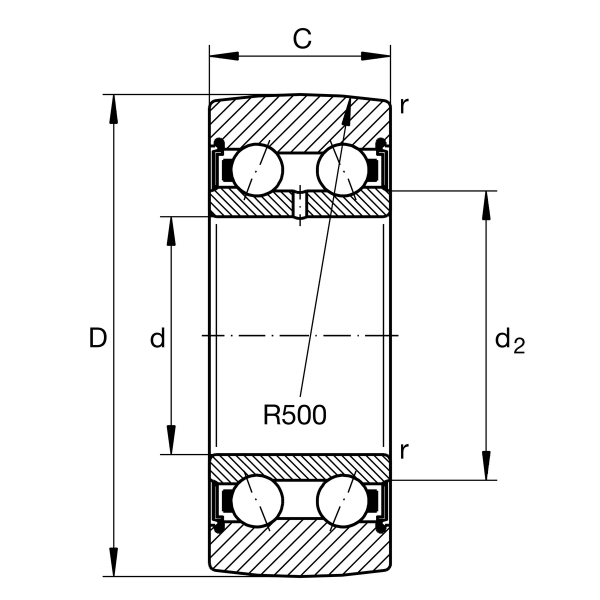

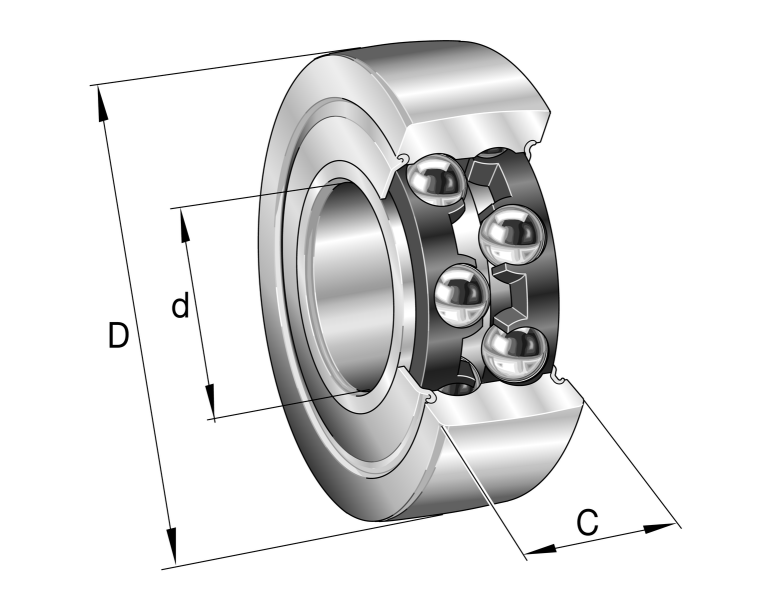

Main Dimensions & Performance Data
D
62 mm
Outside diameter
d
30 mm
Bore diameter
C
19 mm
Height
Cr w
16,100 N
Basic dynamic load rating, radial
C0r w
12,200 N
Basic static load rating, radial
Cur w
650 N
Fatigue load limit, radial
nD G
4,000 1/min
Speed on permanent grease lubrication
Fr per
12,200 N
Permissible dynamic load outer ring, radial
≈m
0.25 kg
Weight
