INA LR5207-2HRS-TVH-XL
Track Rollers
Track roller LR..-2HRS-TVH-XL, two-row, no plastic tyre
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

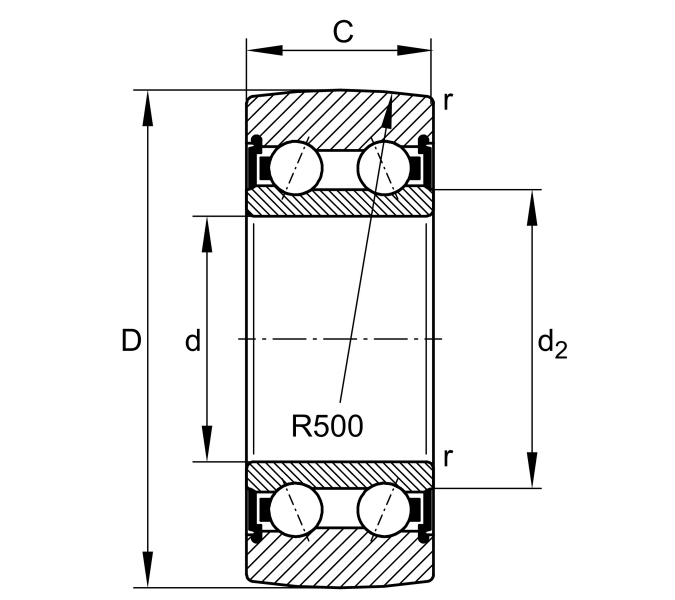

Main Dimensions & Performance Data
D
80 mm
Outside diameter
d
35 mm
Bore diameter
C
27 mm
Height
Cr w
32,500 N
Basic dynamic load rating, radial
C0r w
27,500 N
Basic static load rating, radial
Cur w
1,450 N
Fatigue load limit, radial
nD G
3,100 1/min
Speed on permanent grease lubrication
Fr per
22,200 N
Permissible dynamic load outer ring, radial
≈m
0.66 kg
Weight
