INA LR5304-2HRS-TVH-XL
Track Rollers
Track rollers LR50, double row, sealed on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

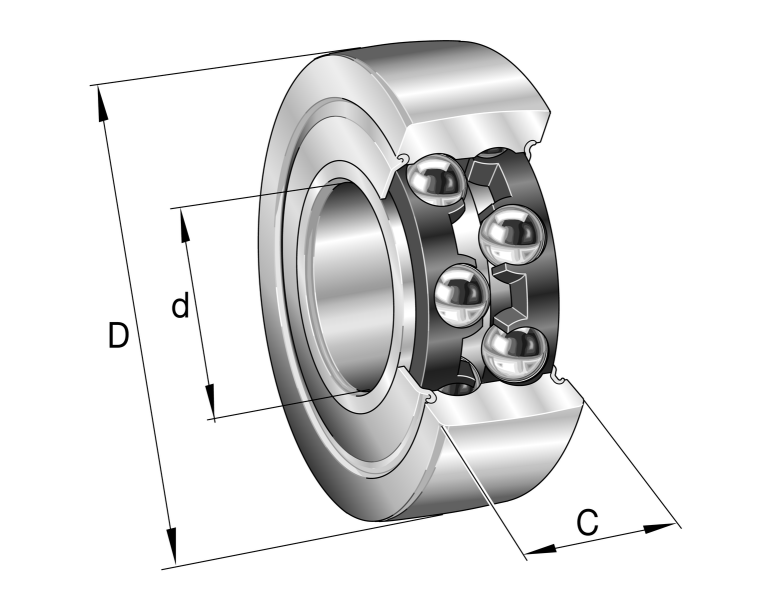

Main Dimensions & Performance Data
D
62 mm
Outside diameter
d
20 mm
Bore diameter
C
22.2 mm
Height
Cr w
22,200 N
Basic dynamic load rating, radial
C0r w
17,200 N
Basic static load rating, radial
Cur w
860 N
Fatigue load limit, radial
nD G
4,850 1/min
Speed on permanent grease lubrication
Fr per
17,200 N
Permissible dynamic load outer ring, radial
≈m
0.34 kg
Weight
