INA NKIA5904-XL
Needle Roller/Angular Contact Ball Bearings
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

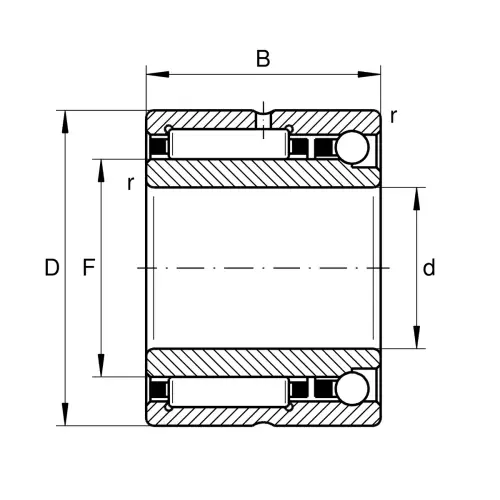

Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
37 mm
Outside diameter
B
23 mm
Width
Cr
23,700 N
Basic dynamic load rating, radial
C0r
25,500 N
Basic static load rating, radial
Ca
4,900 N
Basic dynamic load rating, axial
C0a
7,400 N
Basic static load rating, axial
Cur
4,700 N
Fatigue limit load, radial
Cur
4,700 N
Fatigue load limit, radial
Cua
335 N
Fatigue load limit, axial
nG
17,200 1/min
Limiting speed
nϑr
14,000 1/min
Reference speed
≈m
104.78 g
Weight
