INA NKIB5903-XL

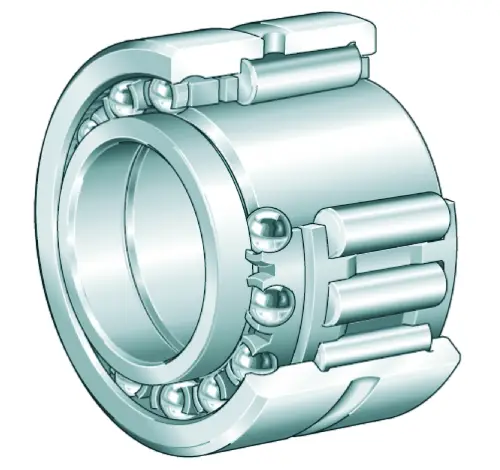

Needle Roller/Angular Contact Ball Bearings
Needle roller/angular contact ball bearings NKIB, double direction axial component
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

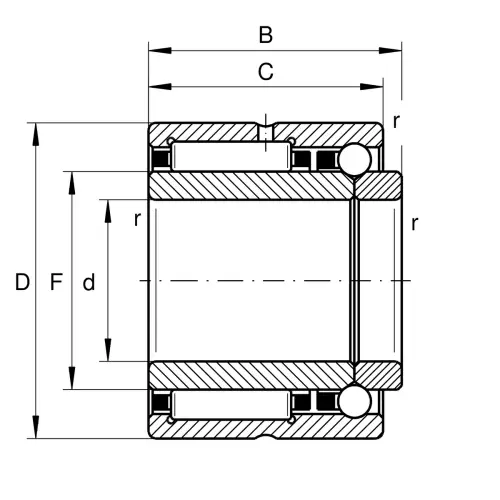

Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
30 mm
Outside diameter
B
20 mm
Width
Cr
12,400 N
Basic dynamic load rating, radial
C0r
14,600 N
Basic static load rating, radial
Ca
3,150 N
Basic dynamic load rating, axial
C0a
4,900 N
Basic static load rating, axial
Cur
2,650 N
Fatigue load limit, radial
Cua
222 N
Fatigue load limit, axial
nG
20,600 1/min
Limiting speed
nϑr
15,000 1/min
Reference speed
≈m
55.58 g
Weight
