INA NKIB5908-XL
Needle Roller/Angular Contact Ball Bearings
Needle roller/angular contact ball bearings NKIB, double direction axial component
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

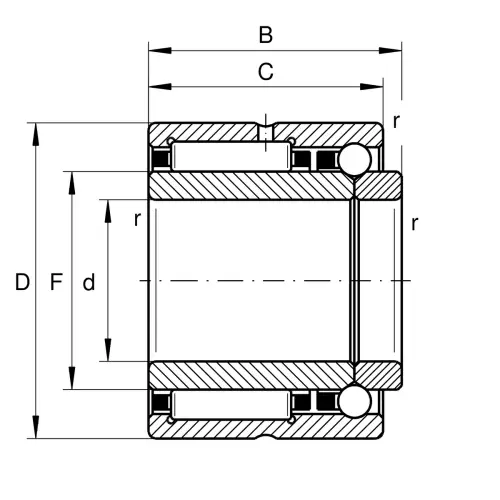

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
62 mm
Outside diameter
B
34 mm
Width
Cr
48,500 N
Basic dynamic load rating, radial
C0r
67,000 N
Basic static load rating, radial
Ca
9,200 N
Basic dynamic load rating, axial
C0a
19,400 N
Basic static load rating, axial
Cur
11,700 N
Fatigue load limit, radial
Cua
880 N
Fatigue load limit, axial
nG
9,600 1/min
Limiting speed
nϑr
7,500 1/min
Reference speed
≈m
335 g
Weight
