INA ZL5203-DRS
Stud Type Track Rollers
Stud type track rollers ZL52..-DRS, double row, lip seal on one side
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

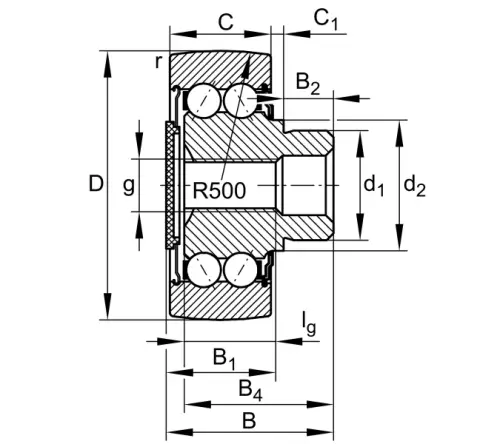

Main Dimensions & Performance Data
D
47 mm
Outside diameter
d1
18 mm
Fit diameter of roller stud / stud
B
39.5 mm
Width
Cr w
12,800 N
Basic dynamic load rating, radial
C0r w
8,600 N
Basic static load rating, radial
Cur w
430 N
Fatigue load limit, radial
nD G
5,500 1/min
Speed on permanent grease lubrication
≈m
0.19 kg
Weight
