MCGILL GR-10
(BRAND)：MCGILL
(Availability)：In Stock
Description

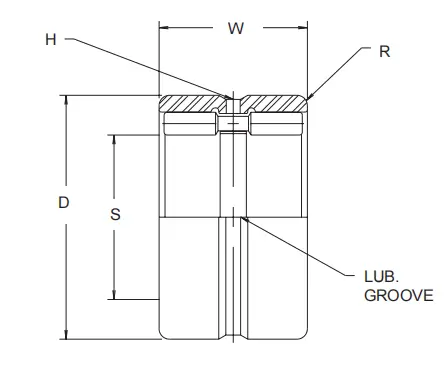

S SHAFT DIA.
0.625
D*
1.125
W
1
H
5/64
R MAX. FILLET FOR HOUSING
0.025
HSG. BORE DIA. ROTATING HOUSING
1.1247
HSG. BORE DIA. STATIONARY HOUSING
1.1257
STATIC LOAD RATING (LBS.)
9100
BASIC DYNAMIC RATING (LBS.)
4700
