MCGILL GR-12
(BRAND)：MCGILL
(Availability)：In Stock
Description

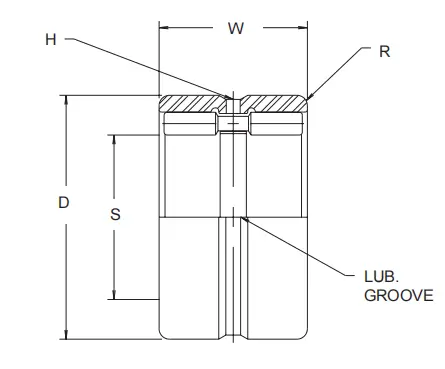

S SHAFT DIA.
0.75
D*
1.25
W
1
H
5/64
R MAX. FILLET FOR HOUSING
0.04
HSG. BORE DIA. ROTATING HOUSING
1.2497
HSG. BORE DIA. STATIONARY HOUSING
1.2507
STATIC LOAD RATING (LBS.)
10900
BASIC DYNAMIC RATING (LBS.)
5100
