MCGILL GR-16
(BRAND)：MCGILL
(Availability)：In Stock
Description

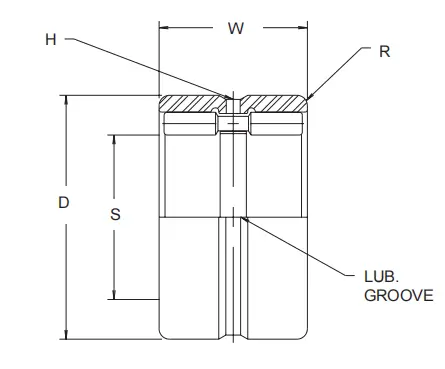

S SHAFT DIA.
1
D*
1.5
W
1
H
5/64
R MAX. FILLET FOR HOUSING
0.04
HSG. BORE DIA. ROTATING HOUSING
1.4997
HSG. BORE DIA. STATIONARY HOUSING
1.5007
STATIC LOAD RATING (LBS.)
14500
BASIC DYNAMIC RATING (LBS.)
6050
