MCGILL GR-14
(BRAND)：MCGILL
(Availability)：In Stock

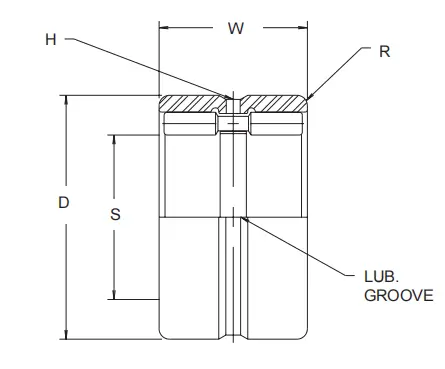

Description
S SHAFT DIA.
0.875
D*
1.375
W
1
H
5/64
R MAX. FILLET FOR HOUSING
0.04
HSG. BORE DIA. ROTATING HOUSING
1.3747
HSG. BORE DIA. STATIONARY HOUSING
1.3757
STATIC LOAD RATING (LBS.)
12800
BASIC DYNAMIC RATING (LBS.)
5700
