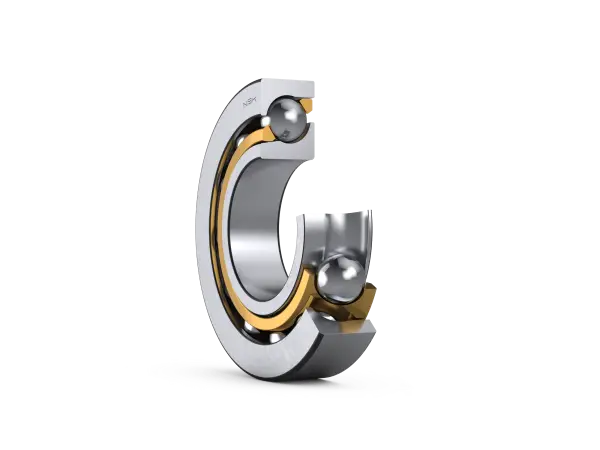

NSK 160TAC03DM
For High-Load Drive Applications (NSKTAC 03 Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
160TAC03DM
Boundary Dimensions
d
160
mm
Bore diameter
D
340
mm
Outside diameter
B
68
mm
Width
r(min.)
4
mm
Chamfer Dimension
r1(min.)
1.5
mm
Chamfer Dimension
Basic Load Ratings
Ca(1row)
870
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Ca(2row)
1420
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Ca(3row)
1880
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Ca(4row)
2300
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Ca(5row)
2690
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Speeds
Grease
1200
min-1
Limiting Speed
Oil (Oil-air)
1500
min-1
Limiting Speed
Dimensions
55°
Contact Angle
d1
201.2
mm
Shoulder Diameter
d2
246.2
mm
Shoulder Diameter
D1
254.3
mm
Shoulder/Recess Diameter
D2
301.6
mm
Shoulder/Recess Diameter
Performance
1row
1040
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
2row
2080
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
3row
3100
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
4row
4150
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
5row
5200
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
