NSK 51102

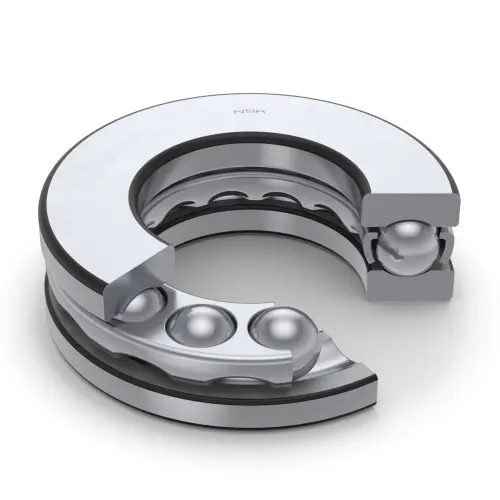

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
51102
Boundary Dimensions
d
15
mm
Bore diameter
D
28
mm
Outside diameter
T,T3
9
mm
Height
r (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Ca
10600
N
Basic dynamic load rating
C0a
16800
N
Basic static load rating
Speeds
Grease
6300
min-1
Grease lubrication
Oil (Oil-bath)
9500
min-1
Oil-bath lubrication
d1
28
mm
Outside diameter shaft washer
D1
16
mm
Inner diameter housing washer
Dimensions
da (min.)
23
mm
Diameter of shaft abutment
Da (max.)
20
mm
Diameter of housing abutment
ra (max.)
0.3
mm
Radius of shaft or housing fillet
