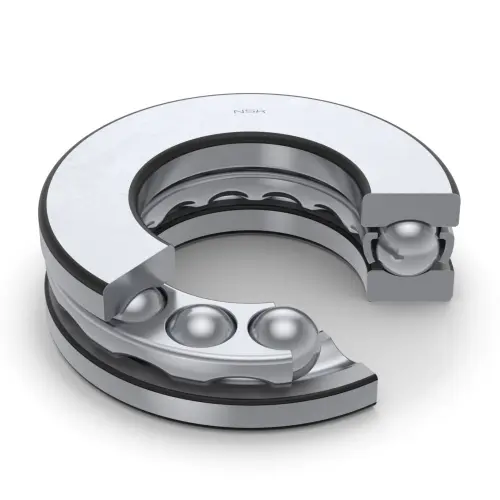

NSK 51220
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
51220
Boundary Dimensions
d
100
mm
Bore diameter
D
150
mm
Outside diameter
T,T3
38
mm
Height
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Ca
135000
N
Basic dynamic load rating
C0a
375000
N
Basic static load rating
Speeds
Grease
1300
min-1
Grease lubrication
Oil (Oil-bath)
2000
min-1
Oil-bath lubrication
d1
150
mm
Outside diameter shaft washer
D1
103
mm
Inner diameter housing washer
Dimensions
da (min.)
130
mm
Diameter of shaft abutment
Da (max.)
120
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
