NSK 51260X

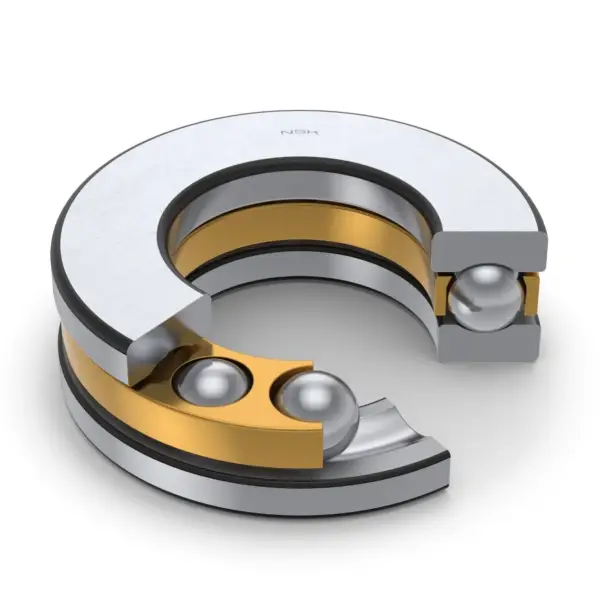

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
51260X
Boundary Dimensions
d
300
mm
Bore diameter
D
420
mm
Outside diameter
T,T3
95
mm
Height
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Ca
540000
N
Basic dynamic load rating
C0a
2410000
N
Basic static load rating
Speeds
Grease
450
min-1
Grease lubrication
Oil (Oil-bath)
670
min-1
Oil-bath lubrication
d1
415
mm
Outside diameter shaft washer
D1
304
mm
Inner diameter housing washer
Dimensions
da (min.)
371
mm
Diameter of shaft abutment
Da (max.)
349
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
