NSK 51305

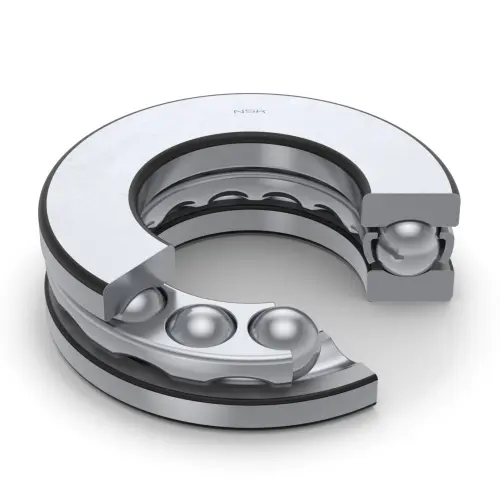

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
51305
Boundary Dimensions
d
25
mm
Bore diameter
D
52
mm
Outside diameter
T,T3
18
mm
Height
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Ca
36000
N
Basic dynamic load rating
C0a
61500
N
Basic static load rating
Speeds
Grease
3200
min-1
Grease lubrication
Oil (Oil-bath)
5000
min-1
Oil-bath lubrication
d1
52
mm
Outside diameter shaft washer
D1
27
mm
Inner diameter housing washer
Dimensions
da (min.)
41
mm
Diameter of shaft abutment
Da (max.)
36
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
