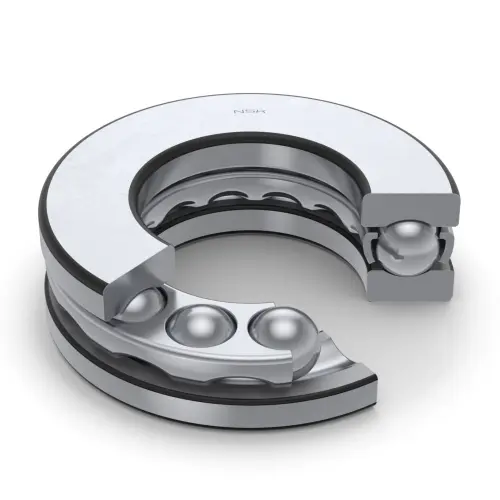

NSK 51309
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
51309
Boundary Dimensions
d
45
mm
Bore diameter
D
85
mm
Outside diameter
T,T3
28
mm
Height
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Ca
80500
N
Basic dynamic load rating
C0a
163000
N
Basic static load rating
Speeds
Grease
2000
min-1
Grease lubrication
Oil (Oil-bath)
3000
min-1
Oil-bath lubrication
d1
85
mm
Outside diameter shaft washer
D1
47
mm
Inner diameter housing washer
Dimensions
da (min.)
69
mm
Diameter of shaft abutment
Da (max.)
61
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
