NSK 51313

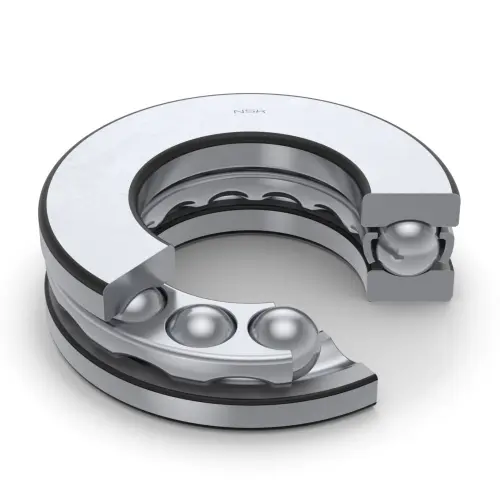

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
51313
Boundary Dimensions
d
65
mm
Bore diameter
D
115
mm
Outside diameter
T,T3
36
mm
Height
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Ca
123000
N
Basic dynamic load rating
C0a
282000
N
Basic static load rating
Speeds
Grease
1500
min-1
Grease lubrication
Oil (Oil-bath)
2400
min-1
Oil-bath lubrication
d1
115
mm
Outside diameter shaft washer
D1
67
mm
Inner diameter housing washer
Dimensions
da (min.)
95
mm
Diameter of shaft abutment
Da (max.)
85
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
