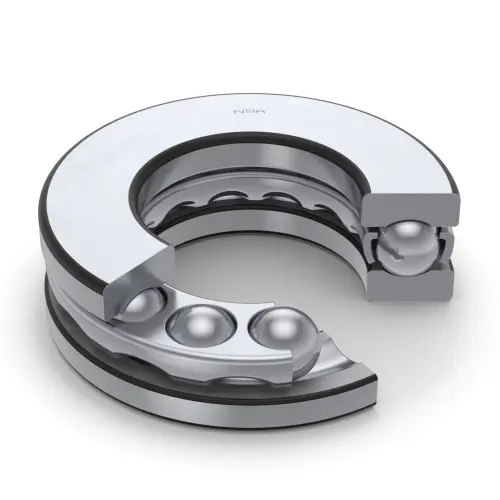

NSK 51408
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
51408
Boundary Dimensions
d
40
mm
Bore diameter
D
90
mm
Outside diameter
T,T3
36
mm
Height
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Ca
103000
N
Basic dynamic load rating
C0a
188000
N
Basic static load rating
Speeds
Grease
1700
min-1
Grease lubrication
Oil (Oil-bath)
2600
min-1
Oil-bath lubrication
d1
90
mm
Outside diameter shaft washer
D1
42
mm
Inner diameter housing washer
Dimensions
da (min.)
70
mm
Diameter of shaft abutment
Da (max.)
60
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
