NSK 51416

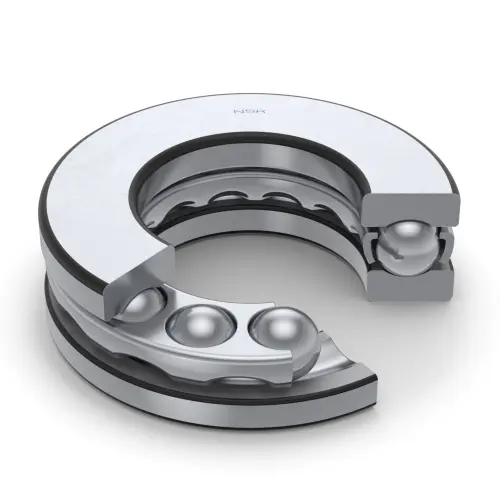

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
51416
Boundary Dimensions
d
80
mm
Bore diameter
D
170
mm
Outside diameter
T,T3
68
mm
Height
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Ca
272000
N
Basic dynamic load rating
C0a
620000
N
Basic static load rating
Speeds
Grease
900
min-1
Grease lubrication
Oil (Oil-bath)
1300
min-1
Oil-bath lubrication
d1
170
mm
Outside diameter shaft washer
D1
83
mm
Inner diameter housing washer
Dimensions
da (min.)
133
mm
Diameter of shaft abutment
Da (max.)
117
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
