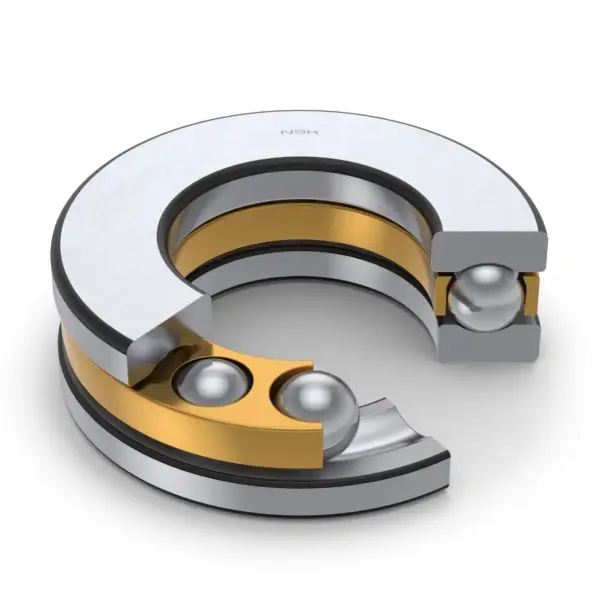

NSK 51426X
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
51426X
Boundary Dimensions
d
130
mm
Bore diameter
D
270
mm
Outside diameter
T,T3
110
mm
Height
r (min.)
4
mm
Chamfer dimension
Basic Load Ratings
Ca
525000
N
Basic dynamic load rating
C0a
1590000
N
Basic static load rating
Speeds
Grease
530
min-1
Grease lubrication
Oil (Oil-bath)
800
min-1
Oil-bath lubrication
d1
265
mm
Outside diameter shaft washer
D1
134
mm
Inner diameter housing washer
Dimensions
da (min.)
212
mm
Diameter of shaft abutment
Da (max.)
188
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
