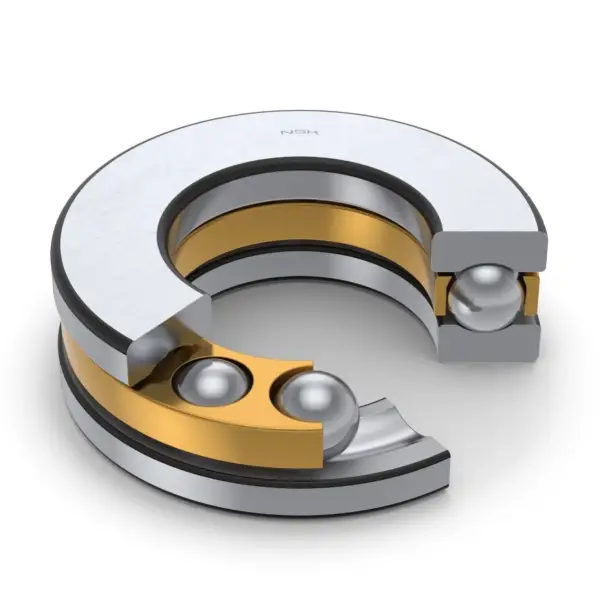

NSK 51432X
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
51432X
Boundary Dimensions
d
160
mm
Bore diameter
D
320
mm
Outside diameter
T,T3
130
mm
Height
r (min.)
5
mm
Chamfer dimension
Basic Load Ratings
Ca
650000
N
Basic dynamic load rating
C0a
2210000
N
Basic static load rating
Speeds
Grease
450
min-1
Grease lubrication
Oil (Oil-bath)
670
min-1
Oil-bath lubrication
d1
315
mm
Outside diameter shaft washer
D1
164
mm
Inner diameter housing washer
Dimensions
da (min.)
254
mm
Diameter of shaft abutment
Da (max.)
226
mm
Diameter of housing abutment
ra (max.)
4
mm
Radius of shaft or housing fillet
