NSK 51434X

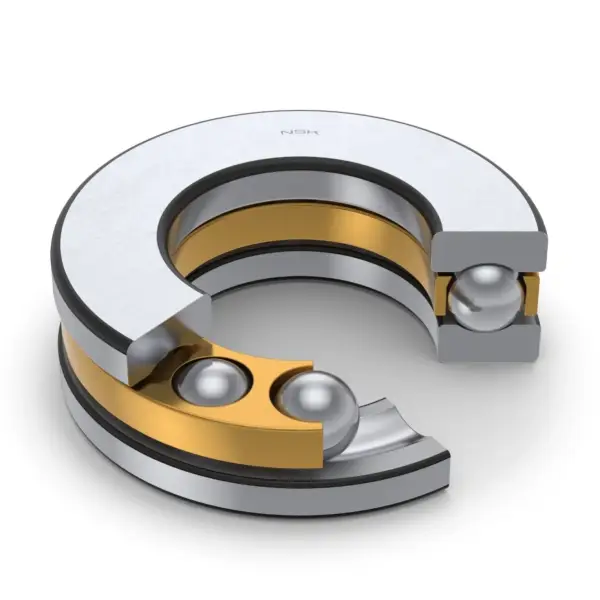

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
51434X
Boundary Dimensions
d
170
mm
Bore diameter
D
340
mm
Outside diameter
T,T3
135
mm
Height
r (min.)
5
mm
Chamfer dimension
Basic Load Ratings
Ca
715000
N
Basic dynamic load rating
C0a
2480000
N
Basic static load rating
Speeds
Grease
430
min-1
Grease lubrication
Oil (Oil-bath)
630
min-1
Oil-bath lubrication
d1
335
mm
Outside diameter shaft washer
D1
174
mm
Inner diameter housing washer
Dimensions
da (min.)
269
mm
Diameter of shaft abutment
Da (max.)
241
mm
Diameter of housing abutment
ra (max.)
4
mm
Radius of shaft or housing fillet
