NSK 53210

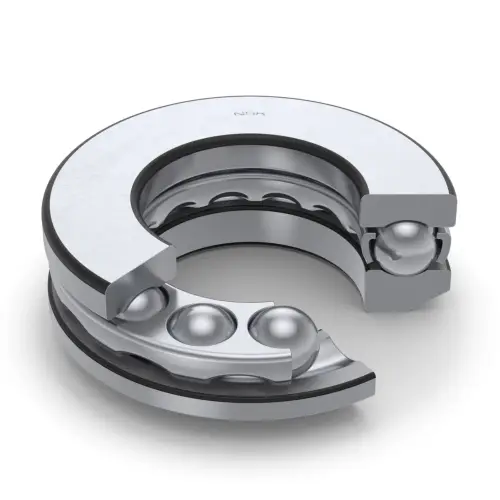

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
53210

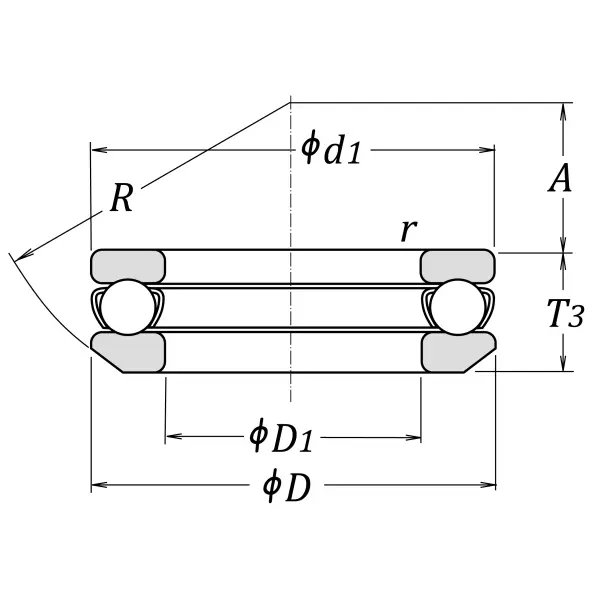

Boundary Dimensions
d
50
mm
Bore diameter
D
78
mm
Outside diameter
T,T3
23.5
mm
Height
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Ca
49000
N
Basic dynamic load rating
C0a
111000
N
Basic static load rating
Speeds
Grease
2400
min-1
Grease lubrication
Oil (Oil-bath)
3600
min-1
Oil-bath lubrication
A
32.5
mm
Centre height housing washer sphere
R
64
mm
Radius sphered housing washer
d1
78
mm
Outside diameter shaft washer
D1
52
mm
Inner diameter housing washer

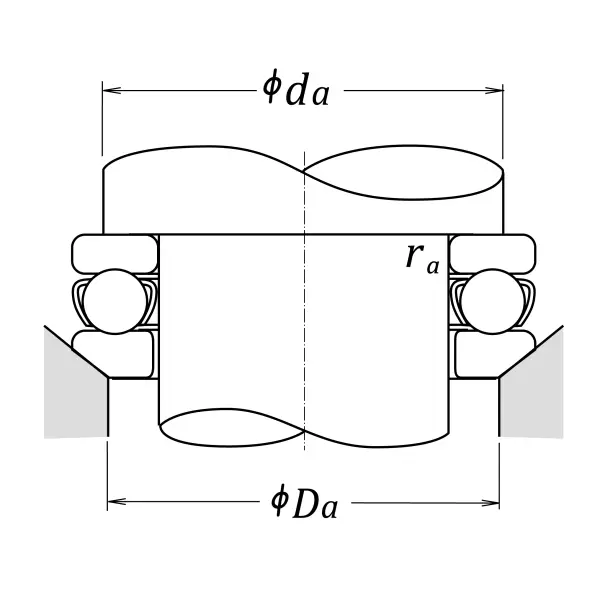

Dimensions
da (min.)
67
mm
Diameter of shaft abutment
Da (max.)
61
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
