NSK 53211

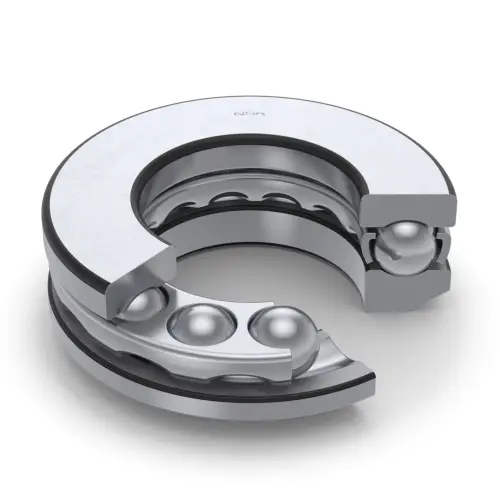

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
53211

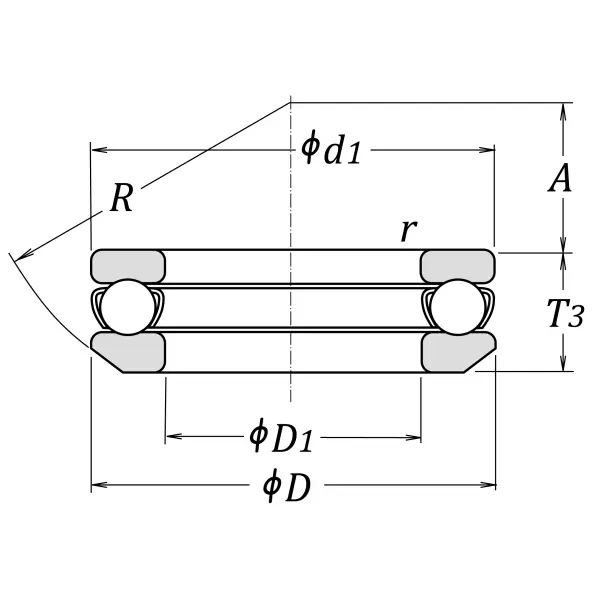

Boundary Dimensions
d
55
mm
Bore diameter
D
90
mm
Outside diameter
T,T3
27.3
mm
Height
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Ca
70000
N
Basic dynamic load rating
C0a
159000
N
Basic static load rating
Speeds
Grease
2200
min-1
Grease lubrication
Oil (Oil-bath)
3200
min-1
Oil-bath lubrication
A
35
mm
Centre height housing washer sphere
R
72
mm
Radius sphered housing washer
d1
90
mm
Outside diameter shaft washer
D1
57
mm
Inner diameter housing washer

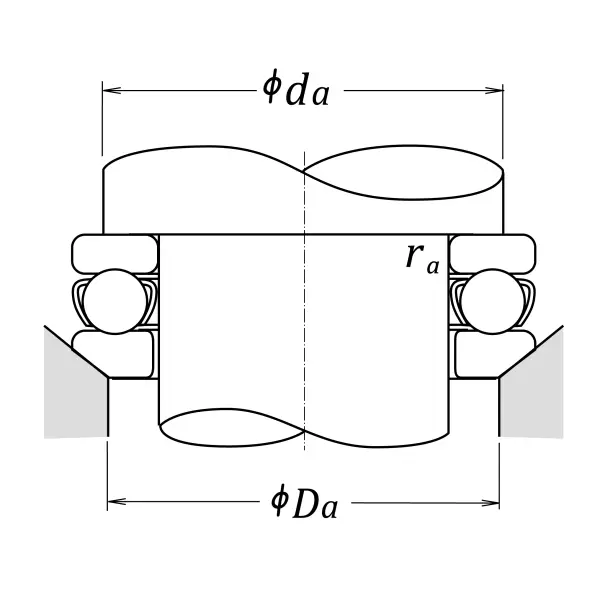

Dimensions
da (min.)
76
mm
Diameter of shaft abutment
Da (max.)
69
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
