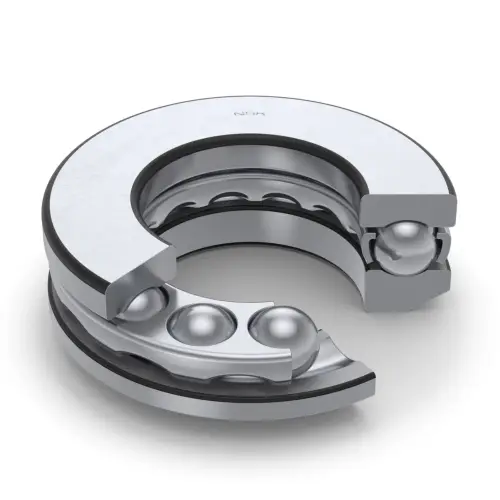

NSK 53224
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
53224
Boundary Dimensions
d
120
mm
Bore diameter
D
170
mm
Outside diameter
T,T3
40.8
mm
Height
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Ca
141000
N
Basic dynamic load rating
C0a
430000
N
Basic static load rating
Speeds
Grease
1200
min-1
Grease lubrication
Oil (Oil-bath)
1800
min-1
Oil-bath lubrication
A
61
mm
Centre height housing washer sphere
R
125
mm
Radius sphered housing washer
d1
170
mm
Outside diameter shaft washer
D1
123
mm
Inner diameter housing washer

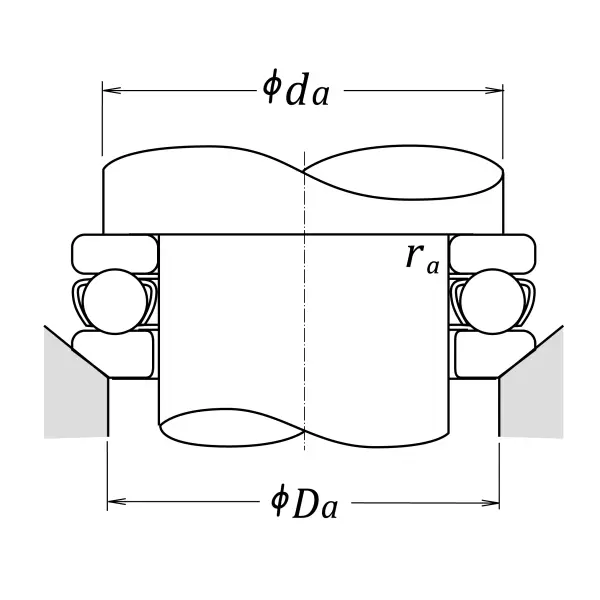

Dimensions
da (min.)
150
mm
Diameter of shaft abutment
Da (max.)
140
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
