NSK 53240X

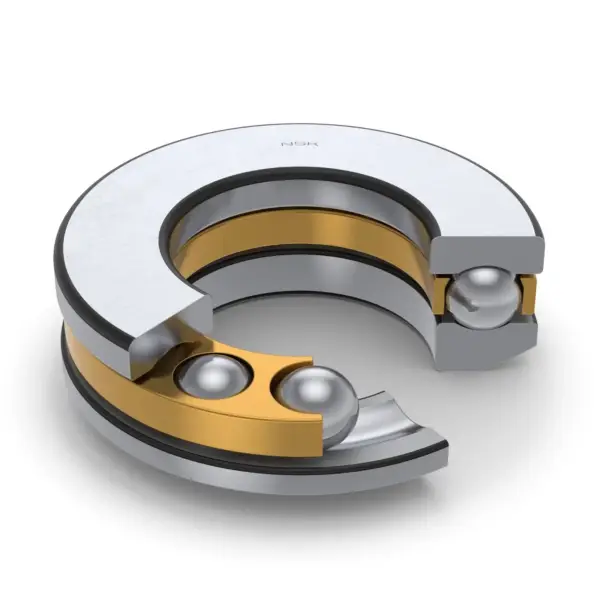

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
53240X
Boundary Dimensions
d
200
mm
Bore diameter
D
280
mm
Outside diameter
T,T3
65.3
mm
Height
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Ca
315000
N
Basic dynamic load rating
C0a
1110000
N
Basic static load rating
Speeds
Grease
710
min-1
Grease lubrication
Oil (Oil-bath)
1100
min-1
Oil-bath lubrication
A
125
mm
Centre height housing washer sphere
R
225
mm
Radius sphered housing washer
d1
277
mm
Outside diameter shaft washer
D1
204
mm
Inner diameter housing washer
Dimensions
da (min.)
248
mm
Diameter of shaft abutment
Da (max.)
232
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
