NSK 53244X

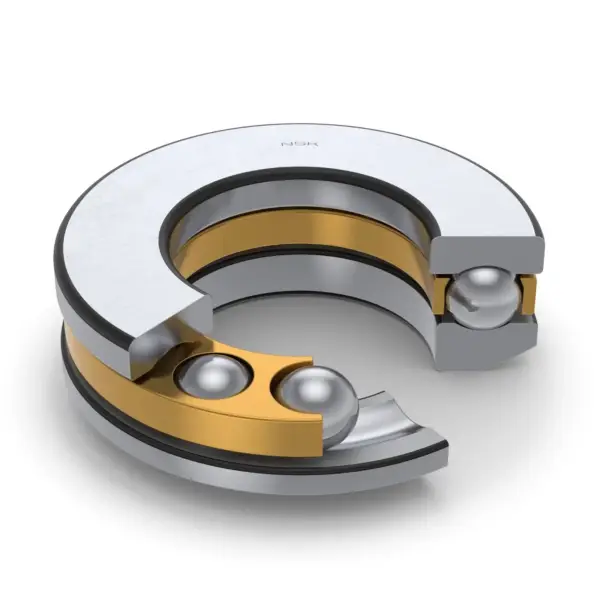

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
53244X
Boundary Dimensions
d
220
mm
Bore diameter
D
300
mm
Outside diameter
T,T3
65.6
mm
Height
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Ca
325000
N
Basic dynamic load rating
C0a
1210000
N
Basic static load rating
Speeds
Grease
670
min-1
Grease lubrication
Oil (Oil-bath)
1000
min-1
Oil-bath lubrication
A
118
mm
Centre height housing washer sphere
R
225
mm
Radius sphered housing washer
d1
297
mm
Outside diameter shaft washer
D1
224
mm
Inner diameter housing washer
Dimensions
da (min.)
268
mm
Diameter of shaft abutment
Da (max.)
252
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
