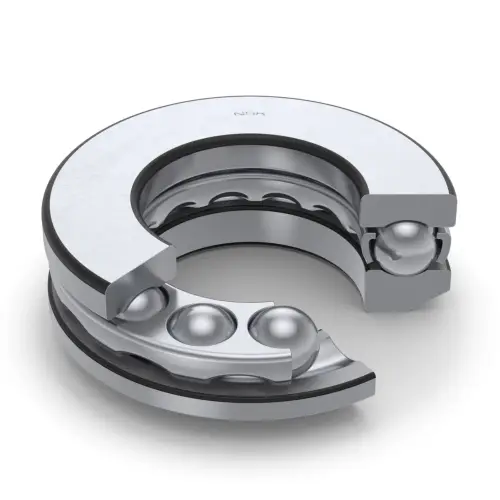

NSK 53316
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
53316
Boundary Dimensions
d
80
mm
Bore diameter
D
140
mm
Outside diameter
T,T3
47.6
mm
Height
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Ca
164000
N
Basic dynamic load rating
C0a
395000
N
Basic static load rating
Speeds
Grease
1300
min-1
Grease lubrication
Oil (Oil-bath)
1900
min-1
Oil-bath lubrication
A
50
mm
Centre height housing washer sphere
R
112
mm
Radius sphered housing washer
d1
140
mm
Outside diameter shaft washer
D1
82
mm
Inner diameter housing washer

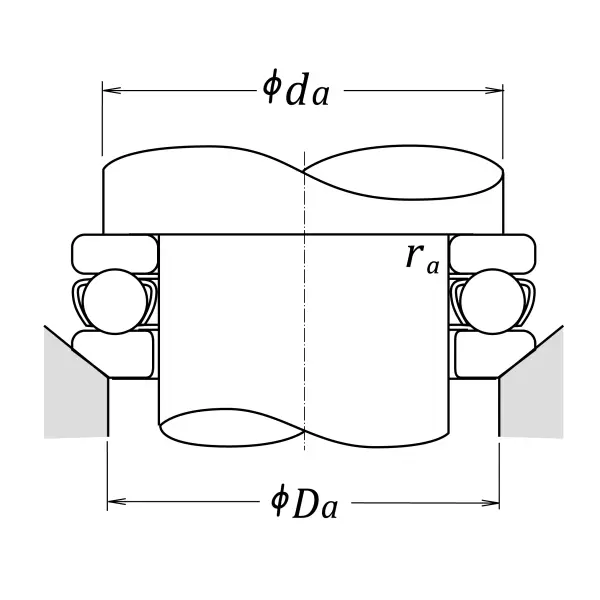

Dimensions
da (min.)
116
mm
Diameter of shaft abutment
Da (max.)
104
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
