NSK 53409

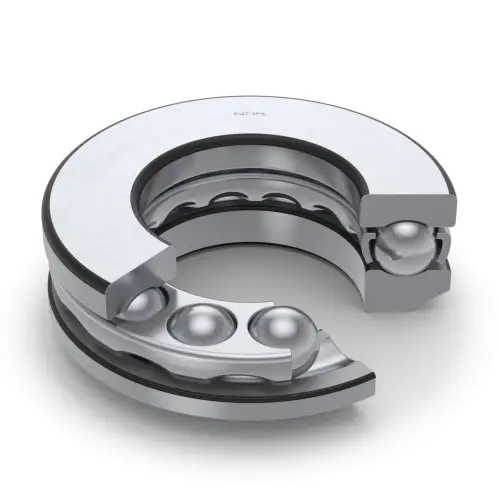

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
53409
Boundary Dimensions
d
45
mm
Bore diameter
D
100
mm
Outside diameter
T,T3
42.4
mm
Height
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Ca
128000
N
Basic dynamic load rating
C0a
246000
N
Basic static load rating
Speeds
Grease
1600
min-1
Grease lubrication
Oil (Oil-bath)
2400
min-1
Oil-bath lubrication
A
29
mm
Centre height housing washer sphere
R
80
mm
Radius sphered housing washer
d1
100
mm
Outside diameter shaft washer
D1
47
mm
Inner diameter housing washer

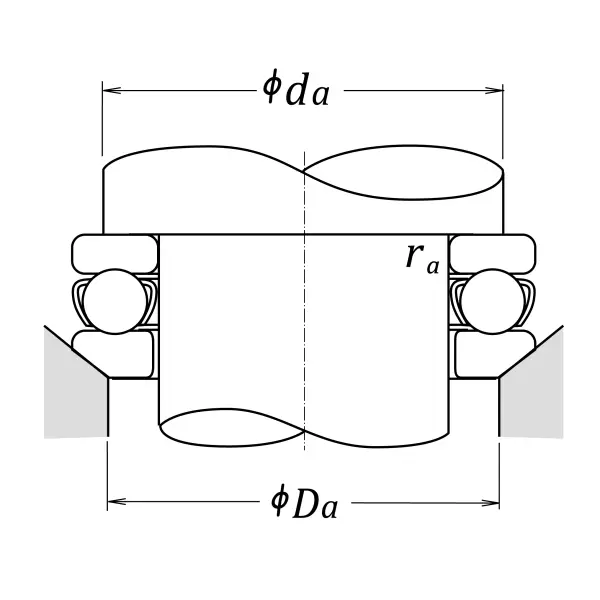

Dimensions
da (min.)
78
mm
Diameter of shaft abutment
Da (max.)
67
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
