NSK 53410

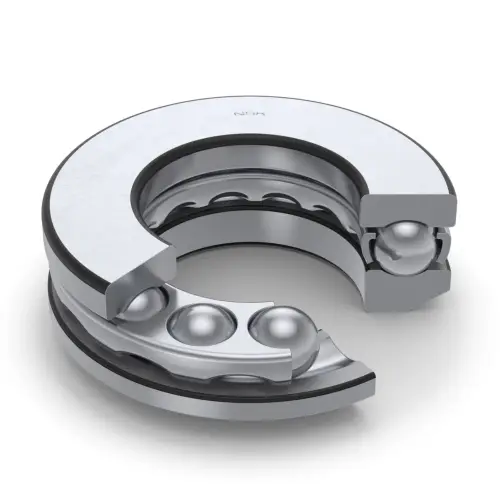

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
53410

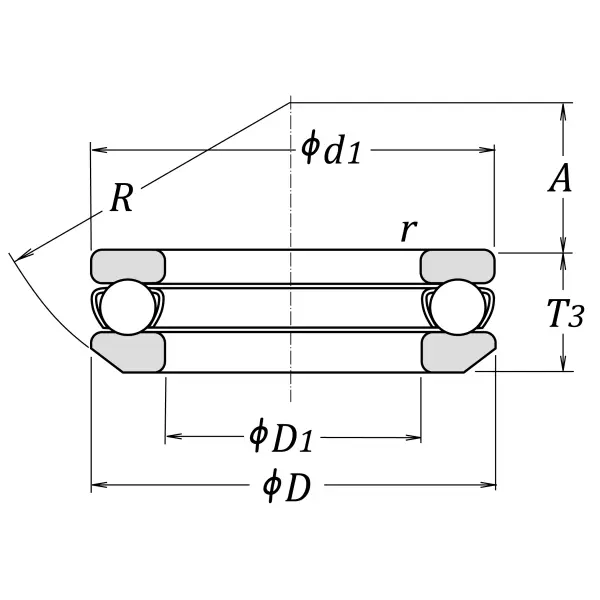

Boundary Dimensions
d
50
mm
Bore diameter
D
110
mm
Outside diameter
T,T3
45.6
mm
Height
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Ca
147000
N
Basic dynamic load rating
C0a
288000
N
Basic static load rating
Speeds
Grease
1400
min-1
Grease lubrication
Oil (Oil-bath)
2200
min-1
Oil-bath lubrication
A
35
mm
Centre height housing washer sphere
R
90
mm
Radius sphered housing washer
d1
110
mm
Outside diameter shaft washer
D1
52
mm
Inner diameter housing washer

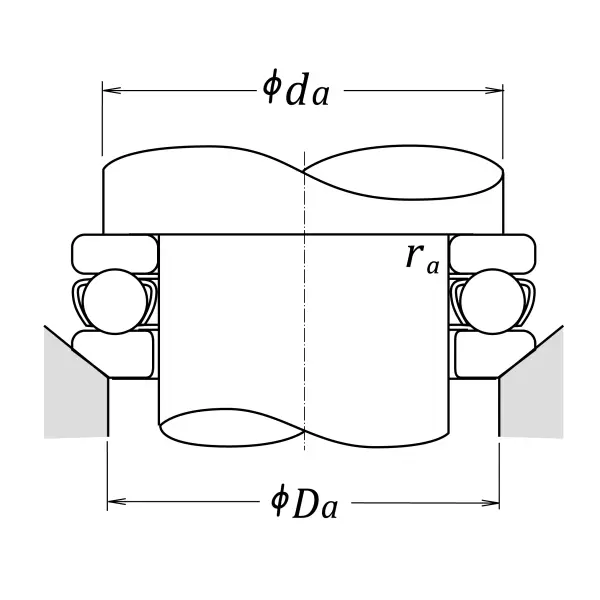

Dimensions
da (min.)
86
mm
Diameter of shaft abutment
Da (max.)
74
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
