NSK 53418XU
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
53418XU

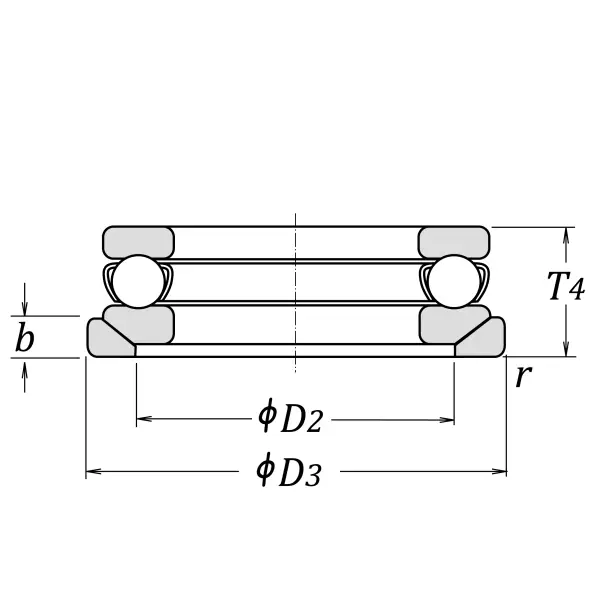

Boundary Dimensions
d
90
mm
Bore diameter
D
190
mm
Outside diameter
T,T3
81.2
mm
Height
T4
88
mm
Height bearing include seat washer
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Ca
330000
N
Basic dynamic load rating
C0a
825000
N
Basic static load rating
Speeds
Grease
800
min-1
Grease lubrication
Oil (Oil-bath)
1200
min-1
Oil-bath lubrication
A
40
mm
Centre height housing washer sphere
R
140
mm
Radius sphered housing washer
b
25.5
mm
Height sphered housing washer
D2
140
mm
Inner diameter sphered seat washer
d1
187
mm
Outside diameter shaft washer
D3
195
mm
Outside diameter sphered housing washer
D1
93
mm
Inner diameter housing washer

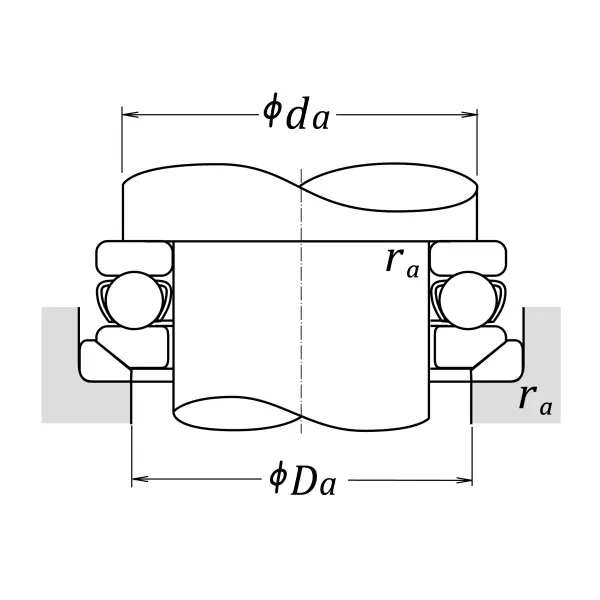

Dimensions
da (min.)
149
mm
Diameter of shaft abutment
Da (max.)
131
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
