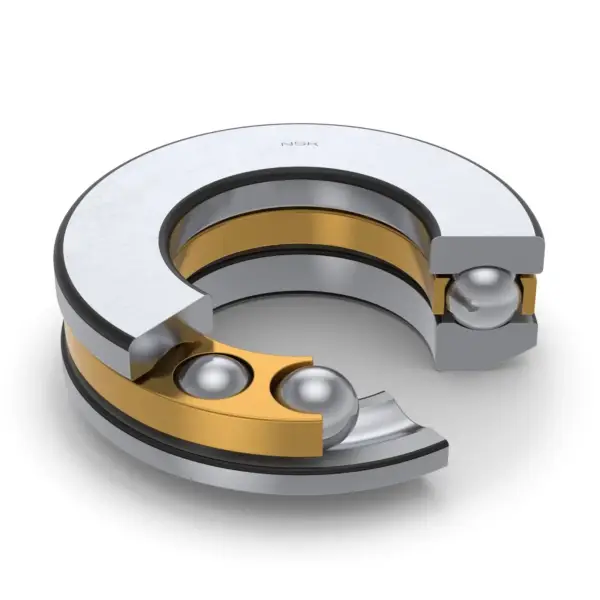

NSK 53420X
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
53420X
Boundary Dimensions
d
100
mm
Bore diameter
D
210
mm
Outside diameter
T,T3
90
mm
Height
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Ca
370000
N
Basic dynamic load rating
C0a
985000
N
Basic static load rating
Speeds
Grease
710
min-1
Grease lubrication
Oil (Oil-bath)
1100
min-1
Oil-bath lubrication
A
50
mm
Centre height housing washer sphere
R
160
mm
Radius sphered housing washer
d1
205
mm
Outside diameter shaft washer
D1
103
mm
Inner diameter housing washer

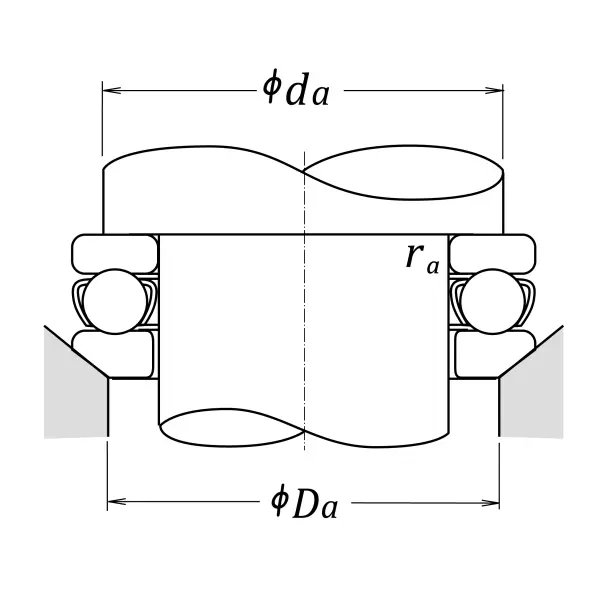

Dimensions
da (min.)
165
mm
Diameter of shaft abutment
Da (max.)
145
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
