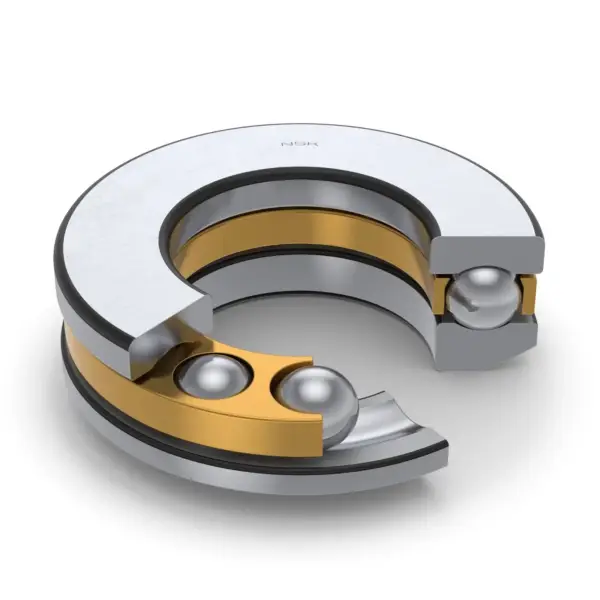

NSK 53424X
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
53424X
Boundary Dimensions
d
120
mm
Bore diameter
D
250
mm
Outside diameter
T,T3
107.3
mm
Height
r (min.)
4
mm
Chamfer dimension
Basic Load Ratings
Ca
480000
N
Basic dynamic load rating
C0a
1400000
N
Basic static load rating
Speeds
Grease
600
min-1
Grease lubrication
Oil (Oil-bath)
900
min-1
Oil-bath lubrication
A
70
mm
Centre height housing washer sphere
R
200
mm
Radius sphered housing washer
d1
245
mm
Outside diameter shaft washer
D1
123
mm
Inner diameter housing washer

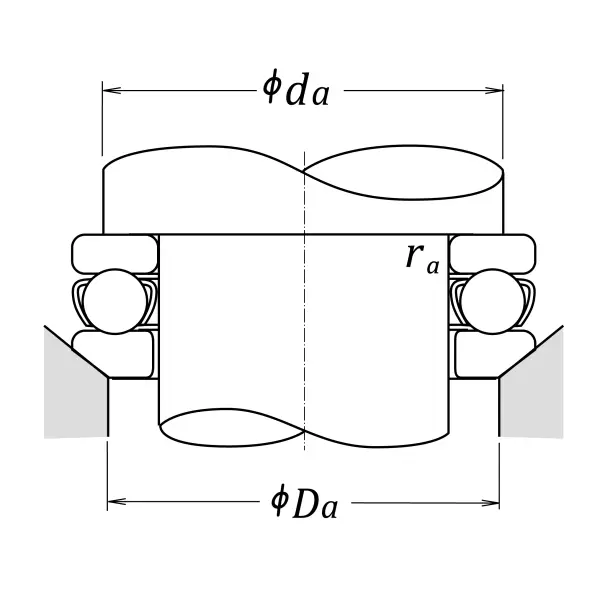

Dimensions
da (min.)
196
mm
Diameter of shaft abutment
Da (max.)
174
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
