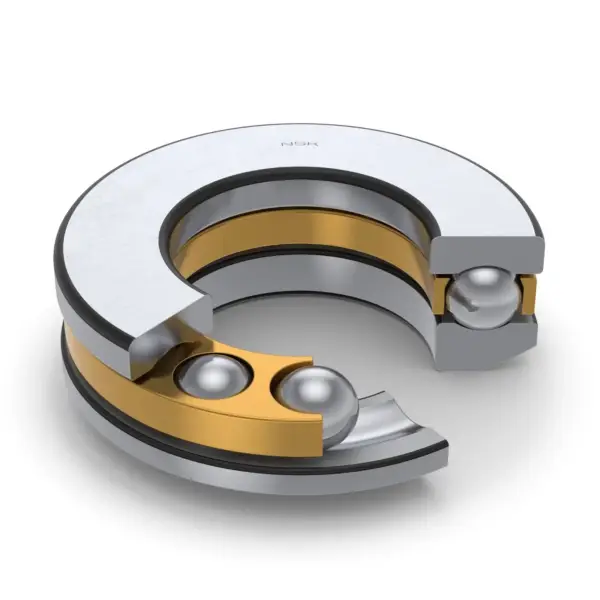

NSK 53436X
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
53436X
Boundary Dimensions
d
180
mm
Bore diameter
D
360
mm
Outside diameter
T,T3
148.3
mm
Height
r (min.)
5
mm
Chamfer dimension
Basic Load Ratings
Ca
750000
N
Basic dynamic load rating
C0a
2730000
N
Basic static load rating
Speeds
Grease
400
min-1
Grease lubrication
Oil (Oil-bath)
600
min-1
Oil-bath lubrication
A
97
mm
Centre height housing washer sphere
R
280
mm
Radius sphered housing washer
d1
355
mm
Outside diameter shaft washer
D1
184
mm
Inner diameter housing washer
Dimensions
da (min.)
285
mm
Diameter of shaft abutment
Da (max.)
255
mm
Diameter of housing abutment
ra (max.)
4
mm
Radius of shaft or housing fillet
