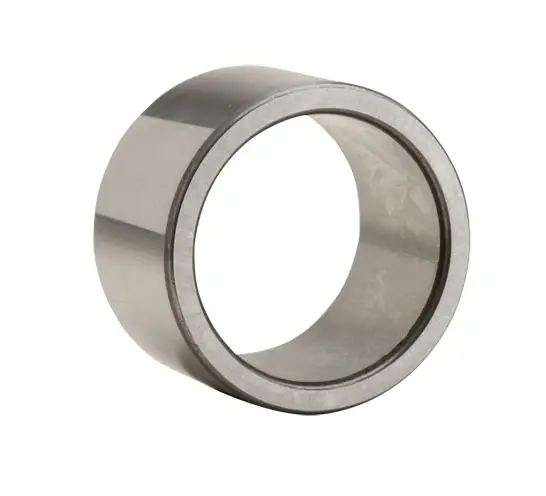

NTN 1R10X14X20
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
0.012 kg
Dimensional Specifications
d
10.000 mm
F
14.000 mm
B
20.000 mm
r
0.300 mm
t
1.000 mm
da min
12.000 mm
ras max
0.300 mm
