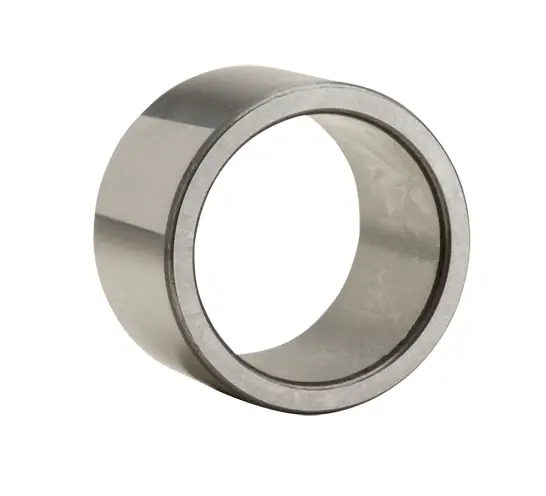

NTN 1R140X160X50
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
1.806 kg

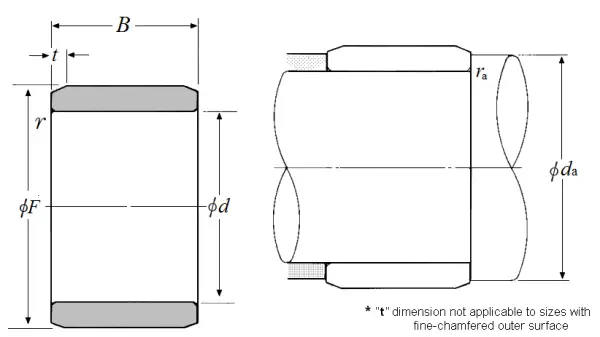

Dimensional Specifications
d
140.000 mm
F
160.000 mm
B
50.000 mm
r
1.500 mm
t
3.000 mm
da min
148.000 mm
ras max
1.500 mm
