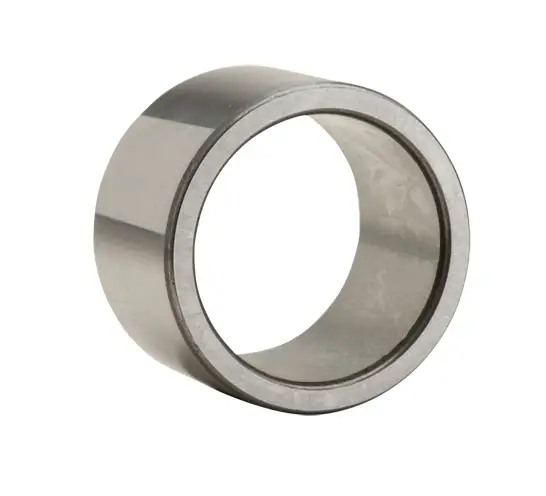

NTN 1R14X17X17
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
0.009 kg

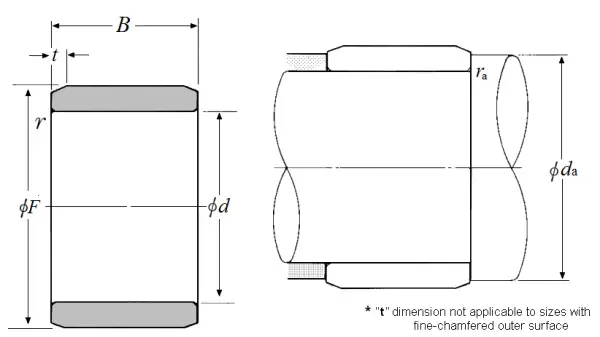

Dimensional Specifications
d
14.000 mm
F
17.000 mm
B
17.000 mm
r
0.300 mm
t
1.500 mm
da min
16.000 mm
ras max
0.300 mm
