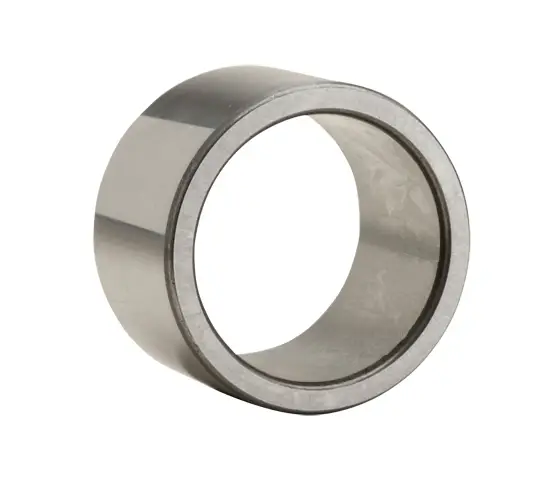

NTN 1R15X18X20.5
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
0.012 kg

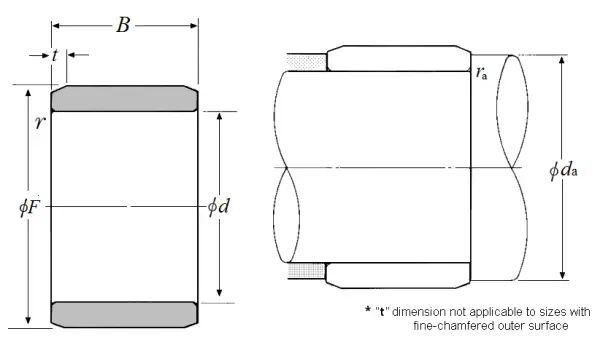

Dimensional Specifications
d
15.000 mm
F
18.000 mm
B
20.500 mm
r
0.300 mm
t
1.500 mm
da min
17.000 mm
ras max
0.300 mm
